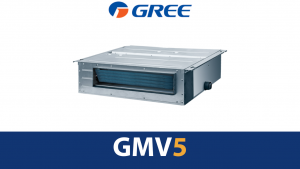

This is the support page for the Low Static Pressure Duct Type indoor unit for Gree GMV VRF air conditioners.
Gree Electric Appliances VRF|
Low Static Pressure Duct Type |
|
|
| Voltage |
220V |
|---|
| Cooling Capacities (kW) |
2.2-14.0 |
|---|
| Heat Pump? |
Yes |
|---|
Model Numbers
- GMV-ND22PLS/B1-T
- GMV-ND25PLS/B1-T
- GMV-ND28PLS/B1-T
- GMV-ND32PLS/B1-T
- GMV-ND36PLS/B1-T
- GMV-ND40PLS/B1-T
- GMV-ND45PLS/B1-T
- GMV-ND50PLS/B1-T
- GMV-ND56PLS/B1-T
- GMV-ND63PLS/B1-T
- GMV-ND71PLS/B1-T
- GMV-ND80PLS/A-T
- GMV-ND90PLS/A-T
- GMV-ND100PLS/A-T
- GMV-ND112PLS/A-T
- GMV-ND125PLS/A-T
- GMV-ND140PLS/A-T
Specifications
| Model
|
GMV-ND22PLS/B1-T
|
GMV-ND25PLS/B1-T
|
GMV-ND28PLS/B1-T
|
GMV-ND32PLS/B1-T
|
GMV-ND36PLS/B1-T
|
| Capacity
|
Cooling
|
kW
|
2.2
|
2.5
|
2.8
|
3.2
|
3.6
|
| Heating
|
kW
|
2.5
|
2.8
|
3.2
|
3.6
|
4.0
|
| Power Supply
|
V/Ph/Hz
|
220-240/1/50 & 208-230/1/60
|
| Power Consumption
|
W
|
65
|
65
|
65
|
65
|
65
|
| Airflow Volume (H/M/L)
|
m3/h
|
610/437/350
|
610/437/350
|
610/437/350
|
650/629/449
|
650/629/449
|
| CFM
|
359/257/206
|
359/257/206
|
359/257/206
|
383/370/264
|
383/370/264
|
| Rated Current
|
Cooling
|
A
|
0.32
|
0.32
|
0.32
|
0.32
|
0.32
|
| Heating
|
A
|
0.32
|
0.32
|
0.32
|
0.32
|
0.32
|
| Water Heating
|
A
|
/
|
/
|
/
|
/
|
/
|
| Sound Pressure Level (H/M/L)
|
dB(A)
|
38/36/30
|
38/36/30
|
38/36/30
|
38/36/30
|
38/36/30
|
| Connecting Pipe Diameter
|
Liquid
|
mm
|
⌀6.35
|
⌀6.35
|
⌀6.35
|
⌀6.35
|
⌀6.35
|
| Gas
|
mm
|
⌀9.52
|
⌀9.52
|
⌀9.52
|
⌀12.7
|
⌀12.7
|
| Drain Pipe
|
External Dia.
|
mm
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
| Thickness
|
mm
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
| Dimension (WxDxH)
|
Outline
|
mm
|
710x450x200
|
| Package
|
mm
|
1003x551x285
|
| Net Weight/Gross Weight
|
kg
|
19/23
|
19/23
|
19/23
|
20/23.5
|
20/23.5
|
| Loading Quantity
|
40' GP
|
set
|
352
|
352
|
352
|
352
|
352
|
| 40' HQ
|
set
|
352
|
352
|
352
|
352
|
352
|
| Model
|
GMV-ND40PLS/B1-T
|
GMV-ND45PLS/B1-T
|
GMV-ND50PLS/B1-T
|
GMV-ND56PLS/B1-T
|
GMV-ND63PLS/B1-T
|
| Capacity
|
Cooling
|
kW
|
4.0
|
4.5
|
5.0
|
5.6
|
6.3
|
| Heating
|
kW
|
4.5
|
5.0
|
5.6
|
6.3
|
7.0
|
| Power Supply
|
V/Ph/Hz
|
220-240/1/50 & 208-230/1/60
|
| Power Consumption
|
W
|
65
|
65
|
65
|
65
|
65
|
| Airflow Volume (H/M/L)
|
m3/h
|
810/743/659
|
810/743/659
|
810/736/690
|
810/736/690
|
810/736/690
|
| CFM
|
477/437/388
|
477/437/388
|
477/433/406
|
477/433/406
|
477/433/406
|
| Rated Current
|
Cooling
|
A
|
0.32
|
0.32
|
0.32
|
0.32
|
0.32
|
| Heating
|
A
|
0.32
|
0.32
|
0.32
|
0.32
|
0.32
|
| Water Heating
|
A
|
/
|
/
|
/
|
/
|
/
|
| Sound Pressure Level (H/M/L)
|
dB(A)
|
37/35/33
|
37/35/33
|
37/35/31
|
37/35/31
|
37/35/31
|
| Connecting Pipe Diameter
|
Liquid
|
mm
|
⌀6.35
|
⌀6.35
|
⌀6.35
|
⌀9.52
|
⌀9.52
|
| Gas
|
mm
|
⌀12.7
|
⌀12.7
|
⌀12.7
|
⌀15.9
|
⌀15.9
|
| Drain Pipe
|
External Dia.
|
mm
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
| Thickness
|
mm
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
| Dimension (WxDxH)
|
Outline
|
mm
|
1010x450x200
|
| Package
|
mm
|
1303x551x285
|
| Net Weight/Gross Weight
|
kg
|
24/29
|
24/29
|
25/30.5
|
25/30.5
|
25/30.5
|
| Loading Quantity
|
40' GP
|
set
|
288
|
288
|
288
|
288
|
288
|
| 40' HQ
|
set
|
288
|
288
|
288
|
288
|
288
|
| Model
|
GMV-ND71PLS/B1-T
|
GMV-ND80PLS/A-T
|
GMV-ND90PLS/A-T
|
GMV-ND100PLS/A-T
|
GMV-ND112PLS/A-T
|
GMV-ND125PLS/A-T
|
GMV-ND140PLS/A-T
|
| Capacity
|
Cooling
|
kW
|
7.1
|
8.0
|
9.0
|
10.0
|
11.2
|
12.5
|
14.0
|
| Heating
|
kW
|
8.0
|
9.0
|
10.0
|
11.2
|
12.5
|
14.0
|
16.0
|
| Power Supply
|
V/Ph/Hz
|
220-240/1/50 & 208-230/1/60
|
| Power Consumption
|
W
|
70
|
140
|
209
|
209
|
209
|
230
|
230
|
| Airflow Volume (H/M/L)
|
m3/h
|
1210/919/754
|
1100/1000/800
|
1500/1250/950
|
1500/1350/1000
|
1700/1500/1100
|
2000/1500/1150
|
2000/1500/1150
|
| CFM
|
712/541/444
|
650/590/471
|
885/736/599
|
885/795/590
|
1000/885/650
|
1175/885/677
|
1175/885/677
|
| Rated Current
|
Cooling
|
A
|
0.34
|
0.7
|
1.0
|
1.0
|
1.0
|
1.1
|
1.1
|
| Heating
|
A
|
0.34
|
0.7
|
1.0
|
1.0
|
1.0
|
1.1
|
1.1
|
| Water Heating
|
A
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
| ESP
|
Pa
|
30/0 ~ 50
|
| Sound Pressure Level (H/M/L)
|
dB(A)
|
39/37/35
|
36/34/31
|
40/36/32
|
40/36/32
|
40/36/32
|
42/40/37
|
42/40/37
|
| Connecting Pipe Diameter
|
Liquid
|
mm
|
⌀9.52
|
⌀9.52
|
⌀9.52
|
⌀9.52
|
⌀9.52
|
⌀9.52
|
⌀9.52
|
| Gas
|
mm
|
⌀15.9
|
⌀15.9
|
⌀15.9
|
⌀15.9
|
⌀15.9
|
⌀15.9
|
⌀15.9
|
| Drain Pipe
|
External Dia.
|
mm
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
| Thickness
|
mm
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
| Dimension (WxDxH)
|
Outline
|
mm
|
1310x450x200
|
1200x655x260
|
1340x655x260
|
| Package
|
mm
|
1603x551x285
|
1448x858x315
|
1588x858x315
|
| Net Weight/Gross Weight
|
kg
|
30.5/37
|
40/47
|
46/55
|
46/55
|
46/55
|
47/56
|
47/56
|
| Loading Quantity
|
40' GP
|
set
|
224
|
96
|
78
|
78
|
78
|
78
|
78
|
| 40' HQ
|
set
|
224
|
96
|
78
|
78
|
78
|
78
|
78
|
