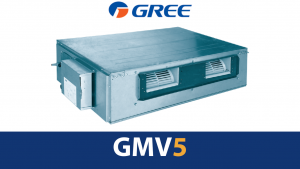

This is the support page for the High Static Pressure Duct Type indoor unit for Gree GMV VRF air conditioners.
Gree Electric Appliances VRF|
High Static Pressure Duct Type |
|
|
| Voltage |
220V |
|---|
| Cooling Capacities (kW) |
2.2-28.0 |
|---|
| Heat Pump? |
Yes |
|---|
Model Numbers
- GMV-ND22PHS/B-T
- GMV-ND25PHS/B-T
- GMV-ND28PHS/B-T
- GMV-ND32PHS/B-T
- GMV-ND36PHS/B-T
- GMV-ND40PHS/B-T
- GMV-ND45PHS/B-T
- GMV-ND50PHS/B-T
- GMV-ND56PHS/B-T
- GMV-ND63PHS/B-T
- GMV-ND71PHS/B-T
- GMV-ND80PHS/B-T
- GMV-ND90PHS/B-T
- GMV-ND100PHS/B-T
- GMV-ND112PHS/B-T
- GMV-ND125PHS/B-T
- GMV-ND140PHS/B-T
- GMV-ND160PHS/B-T
- GMV-ND224PHS/A-T
- GMV-ND280PHS/A-T
Specifications
| Model
|
GMV-ND22PHS/B-T
|
GMV-ND25PHS/B-T
|
GMV-ND28PHS/B-T
|
GMV-ND32PHS/B-T
|
GMV-ND36PHS/B-T
|
GMV-ND40PHS/B-T
|
| Capacity
|
Cooling
|
kW
|
2.2
|
2.5
|
2.8
|
3.2
|
3.6
|
4.0
|
| Heating
|
kW
|
2.5
|
2.8
|
3.2
|
3.6
|
4.0
|
4.5
|
| Power Supply
|
V/Ph/Hz
|
220-240/1/50 & 208-230/1/60
|
| Power Consumption
|
W
|
55
|
55
|
55
|
65
|
65
|
85
|
| Airflow Volume (H/M/L)
|
m3/h
|
550/480/400
|
550/480/400
|
550/480/400
|
600/500/420
|
600/500/420
|
600/500/420
|
| CFM
|
324/282/235
|
324/282/235
|
324/282/235
|
353/294/247
|
353/294/247
|
353/294/247
|
| Rated Current
|
Cooling
|
A
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
| Heating
|
A
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
| Water Heating
|
A
|
/
|
/
|
/
|
/
|
/
|
/
|
| ESP
|
Pa
|
60/0 ~ 150
|
60/0 ~ 150
|
60/0 ~ 150
|
60/0 ~ 150
|
60/0 ~ 150
|
60/0 ~ 150
|
| Sound Pressure Level (H/M/L)
|
dB(A)
|
33/30/28
|
33/30/28
|
33/30/28
|
33/31/29
|
33/31/29
|
36/34/32
|
| Connecting Pipe Diameter
|
Liquid
|
mm
|
⌀6.35
|
⌀6.35
|
⌀6.35
|
⌀6.35
|
⌀6.35
|
⌀6.35
|
| Gas
|
mm
|
⌀9.52
|
⌀9.52
|
⌀9.52
|
⌀12.7
|
⌀12.7
|
⌀12.7
|
| Drain Pipe
|
External Dia.
|
mm
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
| Thickness
|
mm
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
| Dimension (WxDxH)
|
Outline
|
mm
|
700x700x300
|
700x700x300
|
700x700x300
|
700x700x300
|
700x700x300
|
700x700x300
|
| Package
|
mm
|
897x808x362
|
897x808x360
|
897x808x360
|
897x808x360
|
897x808x360
|
897x808x360
|
| Net Weight/Gross Weight
|
kg
|
32/38
|
32/38
|
32/38
|
32/38
|
32/38
|
34/40
|
| Loading Quantity
|
40' GP
|
set
|
168
|
168
|
168
|
168
|
168
|
168
|
| 40' HQ
|
set
|
196
|
196
|
196
|
196
|
196
|
196
|
| Model
|
GMV-ND45PHS/B-T
|
GMV-ND50PHS/B-T
|
GMV-ND56PHS/B-T
|
GMV-ND63PHS/B-T
|
GMV-ND71PHS/B-T
|
GMV-ND80PHS/B-T
|
| Capacity
|
Cooling
|
kW
|
4.5
|
5.0
|
5.6
|
6.3
|
7.0
|
8.0
|
| Heating
|
kW
|
5.0
|
5.6
|
6.3
|
7.1
|
8.0
|
9.0
|
| Power Supply
|
V/Ph/Hz
|
220-240/1/50 & 208-230/1/60
|
| Power Consumption
|
W
|
85
|
85
|
90
|
90
|
100
|
100
|
| Airflow Volume (H/M/L)
|
m3/h
|
850/700/600
|
850/700/600
|
1000/800/700
|
1000/800/700
|
1250/1050/950
|
1250/1050/950
|
| CFM
|
500/412/353
|
500/412/353
|
589/471/412
|
589/471/412
|
736/618/559
|
736/618/559
|
| Rated Current
|
Cooling
|
A
|
0.5
|
0.5
|
0.8
|
0.8
|
0.8
|
0.8
|
| Heating
|
A
|
0.5
|
0.5
|
0.8
|
0.8
|
0.8
|
0.8
|
| Water Heating
|
A
|
/
|
/
|
/
|
/
|
/
|
/
|
| ESP
|
Pa
|
60/0 ~ 150
|
60/0 ~ 150
|
60/0 ~ 150
|
60/0 ~ 150
|
60/0 ~ 150
|
60/0 ~ 150
|
| Sound Pressure Level (H/M/L)
|
dB(A)
|
36/34/32
|
36/34/32
|
37/35/33
|
37/35/33
|
38/36/34
|
38/36/34
|
| Connecting Pipe Diameter
|
Liquid
|
mm
|
⌀6.35
|
⌀6.35
|
⌀9.32
|
⌀9.32
|
⌀9.32
|
⌀9.32
|
| Gas
|
mm
|
⌀12.7
|
⌀12.7
|
⌀15.9
|
⌀15.9
|
⌀15.9
|
⌀15.9
|
| Drain Pipe
|
External Dia.
|
mm
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
| Thickness
|
mm
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
| Dimension (WxDxH)
|
Outline
|
mm
|
700x700x300
|
700x700x300
|
1000x700x300
|
1000x700x300
|
1000x700x300
|
1000x700x300
|
| Package
|
mm
|
897x808x360
|
897x808x360
|
1205x813x360
|
1205x813x360
|
1205x813x360
|
1205x813x360
|
| Net Weight/Gross Weight
|
kg
|
34/40
|
34/40
|
43/49
|
43/49
|
43/49
|
43/49
|
| Loading Quantity
|
40' GP
|
set
|
168
|
168
|
138
|
138
|
138
|
138
|
| 40' HQ
|
set
|
196
|
196
|
161
|
161
|
161
|
161
|
| Model
|
GMV-ND90PHS/B-T
|
GMV-ND100PHS/B-T
|
GMV-ND112PHS/B-T
|
GMV-ND125PHS/B-T
|
GMV-ND140PHS/B-T
|
GMV-ND160PHS/B-T
|
GMV-ND224PHS/B-T
|
GMV-ND280PHS/B-T
|
| Capacity
|
Cooling
|
kW
|
9.0
|
10.0
|
11.2
|
12.5
|
14.0
|
16.0
|
22.4
|
28.0
|
| Heating
|
kW
|
10.0
|
11.2
|
12.5
|
14.0
|
16.0
|
18.0
|
25.0
|
31.0
|
| Power Supply
|
V/Ph/Hz
|
220-240/1/50 & 208-230/1/60
|
| Power Consumption
|
W
|
140
|
140
|
160
|
160
|
220
|
230
|
800
|
900
|
| Airflow Volume (H/M/L)
|
m3/h
|
1800/1450/1250
|
1800/1450/1250
|
2000/1600/1400
|
2000/1600/1400
|
2350/1900/1650
|
2500/2000/1750
|
4000/3600/3200
|
4400/4000/3600
|
| CFM
|
1059/853/736
|
1059/853/736
|
1177/942/824
|
1177/942/824
|
1383/1118/971
|
1471/1177/1030
|
2354/2119/1883
|
2589/2354/2119
|
| Rated Current
|
Cooling
|
A
|
1.1
|
1.1
|
1.1
|
1.1
|
2.0
|
2.0
|
3.7
|
4.1
|
| Heating
|
A
|
1.1
|
1.1
|
1.1
|
1.1
|
2.0
|
2.0
|
3.7
|
4.1
|
| Water Heating
|
A
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
| ESP
|
Pa
|
90/0 ~ 200
|
90/0 ~ 200
|
90/0 ~ 200
|
90/0 ~ 200
|
90/0 ~ 200
|
90/0 ~ 200
|
100/50 ~ 200
|
100/50 ~ 200
|
| Sound Pressure Level (H/M/L)
|
dB(A)
|
40/37/35
|
40/37/35
|
40/38/36
|
40/38/36
|
42/39/37
|
44/41/38
|
54/52/49
|
55/52/50
|
| Connecting Pipe Diameter
|
Liquid
|
mm
|
⌀9.52
|
⌀9.52
|
⌀9.52
|
⌀9.52
|
⌀9.52
|
⌀9.52
|
⌀9.52
|
⌀9.52
|
| Gas
|
mm
|
⌀15.9
|
⌀15.9
|
⌀15.9
|
⌀15.9
|
⌀15.9
|
⌀19.05
|
⌀19.05
|
⌀22.2
|
| Drain Pipe
|
External Dia.
|
mm
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
⌀25
|
⌀30
|
⌀30
|
| Thickness
|
mm
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
1.5
|
1.5
|
| Dimension (WxDxH)
|
Outline
|
mm
|
1400x700x300
|
1400x700x300
|
1400x700x300
|
1400x700x300
|
1400x700x300
|
1400x700x300
|
1483x791x385
|
1686x870x450
|
| Package
|
mm
|
1601x813x360
|
1601x813x360
|
1601x813x360
|
1601x813x360
|
1678x808x365
|
1678x808x365
|
1578x883x472
|
1788x988x580
|
| Net Weight/Gross Weight
|
kg
|
57/64
|
57/64
|
57/64
|
57/64
|
58/67
|
58/67
|
82/104
|
105/140
|
| Loading Quantity
|
40' GP
|
set
|
84
|
84
|
84
|
84
|
84
|
84
|
52
|
52
|
| 40' HQ
|
set
|
98
|
98
|
98
|
98
|
98
|
98
|
65
|
52
|
