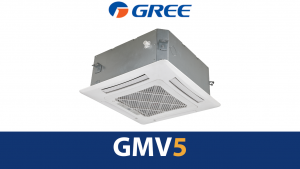

GMV 4-Way Cassette Compact Type

This is the support page for the 4-Way Cassette Compact Type indoor unit for Gree GMV VRF air conditioners.

Gree Electric Appliances VRF

4-Way Cassette Compact Type
Voltage	220V
Cooling Capacities (kW)	2.2-5.6
Heat Pump?	Yes

Model Numbers

• GMV-ND22T/B-T
• GMV-ND28T/B-T
• GMV-ND36T/B-T
• GMV-ND45T/B-T
• GMV-ND50T/B-T
• GMV-ND56T/B-T

Specifications

Model			GMV-ND22T/B-T	GMV-ND28T/B-T	GMV-ND36T/B-T	GMV-ND45T/B-T	GMV-ND50T/B-T	GMV-ND56T/B-T
Capacity	Cooling	kW	2.2	2.8	3.6	4.5	5.0	5.6
	Heating	kW	2.5	3.2	4.0	5.0	5.6	6.3
Power Supply		V/Ph/Hz	220-240/1/50 & 208-230/1/60
Power Consumption		W	35	35	35	45	45	45
Airflow Volume (H/M/L)		m3/h	600/500/400	600/500/400	600/500/400	700/600/500	700/600/500	700/600/500
		CFM	355/295/235	355/295/235	355/295/235	410/355/295	410/355/295	410/355/295
Rated Current	Cooling	A	0.4	0.4	0.4	0.5	0.5	0.5
	Heating	A	0.4	0.4	0.4	0.5	0.5	0.5
	Water Heating	A	/	/	/	/	/	/
Sound Pressure Level (H/M/L)		dB(A)	41/39/37	41/39/37	41/39/37	45/43/39	45/43/39	45/43/39
Connecting Pipe Diameter	Liquid	mm	⌀6.35	⌀6.35	⌀6.35	⌀6.35	⌀6.35	⌀9.52
	Gas	mm	⌀9.52	⌀9.52	⌀12.7	⌀12.7	⌀12.7	⌀15.9
Drain Pipe	External Dia.	mm	⌀25	⌀25	⌀25	⌀25	⌀25	⌀25
	Thickness	mm	2.5	2.5	2.5	2.5	2.5	2.5
Main Body Dimension (WxDxH)	Outline	mm	596x596x240	596x596x240	596x596x240	596x596x240	596x596x240	596x596x240
	Package	mm	778x738x300	778x738x300	778x738x300	778x738x300	778x738x300	778x738x300
Main Body Net Weight/Gross Weight		kg	20.5/25.5	20.5/25.5	20.5/25.5	20.5/25.5	20.5/25.5	20.5/25.5
Panel Dimension (WxDxH)	Outline	mm	670x670x50	670x670x50	670x670x50	670x670x50	670x670x50	670x670x50
	Package	mm	763x763x105	763x763x105	763x763x105	763x763x105	763x763x105	763x763x105
Panel Net Weight/Gross Weight		kg	3.5/5.0	3.5/5.0	3.5/5.0	3.5/5.0	3.5/5.0	3.5/5.0
Loading Quantity	40' GP	set	245	245	245	245	245	245
	40' HQ	set	279	279	279	279	279	279
