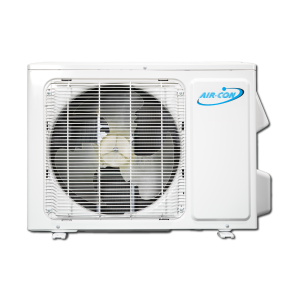

ABHCI4H4S24 is the 21 SEER2 24,000 BTU outdoor unit of Blue Hyper Series.
Exploded View and Parts List
| Number | Description |
|---|---|
| 1 | Panel Parts/Handle |
| 2 | Propeller Fan Blade |
| 3 | DC Motor |
| 4 | Motor Supporter |
| 5 | Mounting Plate |
| 6 | Top Plate |
| 7 | Back Guard |
| 8 | Condenser Assembly |
| 9 | Base Holder Part |
| 10 | Clapboard/Clapboard Part |
| 11 | PFC Inductor |
| 12 | 4-Way Reversing Valve Assembly |
| 13 | 4-Way Reversing Valve |
| 14 | 4-Way Valve Coil |
| 15 | Compressor Parts |
| 16 | Connecting Wire for Compressor |
| 17 | Electronic Expansion Valve Assembly |
| 18 | 3/8" 2-Way Valve |
| 19 | 5/8" 3-Way Valve |
| 20 | Side Cover |
| 21 | Terminal Cover |
| 22 | Electronic Box |
| 23 | Connecting Board |
| 24 | Terminal Block |
| 25 | Controller Component |
| 26 | Electric Box Cover |
| 27 | Temperature Sensor |
| 28 | Coil Pipe Temperature Sensor |
| 29 | Compressor Exhaust Temperature Sensor |
